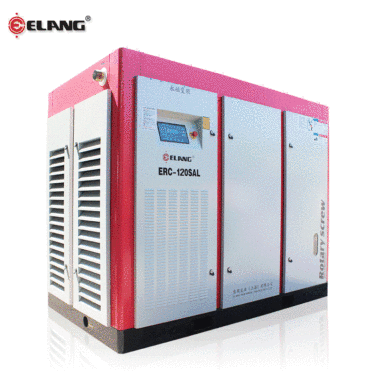

120HP 90Kw VSD Permanent Magnet Screw Air Compressor

Working pressure: 7~13bar 100~181psig
Air delivery: 0~16.2m3/min 0~572.0cfm
Working power: 90kw 120hp
Frequency range: 40%~100%

Whatsapp Contact Us E-mail

Share This Product:

Product Details
CATALGUE DOWNLOAD

120HP 90Kw VSD Permanent Magnet Screw Air Compressor

Product Name:
120HP 90Kw VSD Permanent Magnet Screw Air Compressor
Working Pressure: 7 - 13bar (100 - 181psi)
Air Delivery: 0 - 16.2m³/min
Motor Power: 90kw/120hp
Type of Driving: Direct Driven
Type of Cooling: Air Cooling/Water Cooling
Dimension: 2100*1250*1700mm
Weight: 2030kg
Output pipe Diameter: 2"

The permanent magent synchronizing variable frequency compressor is a most recent compressor with excellent quality and high effiency and energy saving at present. It is an advanced technique owned by only a few advanced countries and zones in the world. It is a high-end tendency for the future compressor development. The design concept and technical measure has broken through the traditioncal concept. It integrates the most sophisticated and energy saving technical factors.

Advantages:

PM motor has 2~ to 7% higher working efficiency than three-phase asynchronous motor. No matter in underloading or overloading conditions, PM compressors keep high working efficiency while three-phase asynchronous motor will have fluctuant efficiency according to the loading conditions. Therefore, compressors with PM motor will save 8% to 30% energy than those with three-phase asynchronous motor.Specialized PM motor has power factor large than 0.95, even close to 1 in some models. Moreover, PM compressors are installed with frequency converter to realize variable frequency starting and decrease the impact to compressor unit and power grid during starting, so as to save operation costs.

1.servo air compressor is a modern new technology air compressor with novel and beautiful appearance.
2.Internally efficient, energy saving!
3.Small machine size, Silent ,durable and run smoothly!
4.Save many troubles of regular maintenance and replacement.

How To Save Energy?

1)The efficiency of the PM motor is always maintained at the level of about 0.95, the power factor is close to 1, and it is increased by 5%-10% compared with the same specifications of the asynchronous motor . The motor is always maintained high efficiency whatever at a light or heavy loads.

2)Variable Frequency start, reducing the energy consumption of air compressor start, a substantial reduction in starting current and maximum power load, saving a lot of electricity, allowing unlimited start and stop, and does not affect the motor life.

3)The comprehensive energy saving of servo air compressor reach the rate of 20% -35%, power saving is considerable. Machine efficiency is more 12% to 18% than ordinary air compressor, and it belongs to IE3 energy efficiency standards,The increasing purchase cost is generally recovered within 1 year!

Example: Rated power 30kW screw air compressor

If 16 hours a day/5600 hours a year. Electricity payment is 0.16USD per KW/H, SF=1.2:
Normal screw compressor has three losses:
A.Unload loss
B.Pressure loss
C.Motor efficiency loss

Calculation As Follows:

A. Unload loss=25% unloading time*The loss of the current load during no-load time (45%):
Unload loss=0.25*(0.45*1.2*30*5600)*0.16= 3628.8 USD/Year
B. Pressure loss=75% loading time* The loss of the pressure loss(2bar/14%)
Pressure loss=0.75*(0.14*1.2*30*5600)*0.16=3386.88USD/Year
C. Motor efficiency loss: 30kw The servo motor is about 5% higher than the normal motor:
motor efficiency loss=30*1.2*5600*0.05*0.16=1612.8USD/Year
Total cost savings: 3628.8+3386.88+1612.8=8628.48USD/Year
Total cost of normal 30kw air compressor: Cost of 75% loading time + Cost 25% unloading time
=0.75*1.2*30*0.16*5600+0.25*0.45*1.2*30*0.16*5600=27820.8USD/Year
Power saving reached:8628.48/27820.8=31%

Application:

About Elang:

FAQ:

Q1.Why customer choose us?

A:ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 20 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and over 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.

Q2.Are you a manufacturer or trading company?

A:We are professional manufacturer with big modern factory in Shanghai,China.Both OEM & ODM service can be accepted.

Q3.What’s your delivery time?

A:Generally 3 to 7 days, if urgently order, pls contact our sales in advance.

Q4.How long is your air compressor warranty?

A:One year for the whole machine and five years for screw air end, except consumble spare parts.

Q5.How long could your air compressor be used?

A:Generally, more than 10 years.

Q6. What's payment term?

A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.

Q7.How about your customer service?

A:24 hours on-line service available. 48hours global problem sovled promise.
10+ professional overseas technical service team.

Q8.How about your after-sales service?

A:1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
