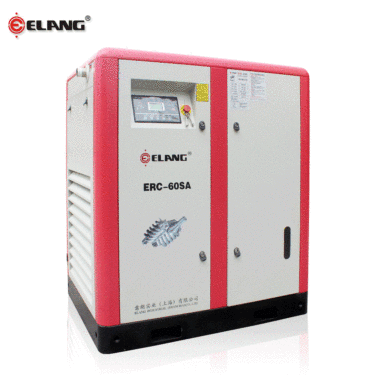

60HP 45Kw Belt Driven Screw Air Compressor

...

Home > Products > Elang Compressor > 60HP 45Kw > 60HP 45Kw Belt Driven Screw Air Compressor

60HP 45Kw Belt Driven Screw Air Compressor

Working pressure: 6.5~13bar 95~190psig
Air delivery: 6~8m3/min 211.9~282.5cfm
Working power: 45kw 60hp

Whatsapp Contact Us E-mail

Share This Product:

Product Details
CATALGUE DOWNLOAD

60HP 45Kw Belt Driven Screw Air Compressor

Product Name:
60HP 45Kw Belt Driven Screw Air Compressor
Working Pressure: 7 - 13bar (100 - 181psi)
Air Delivery: 6 - 8m³/min
Motor Power: 45kw/60hp
Type of Driving: Belt Driven
Type of Cooling: Air Cooling
Dimension: 1300*1000*1470mm
Weight: 1150kg
Output pipe Diameter: 11/2"

Belt driven, which allows the speed of the rotor to be changed by different diameter pulleys.
1. The belt tension for each operating condition is optimized
2. By avoiding excessive start-up tension, greatly extending the belt working life
3. Always ensure the correct pulley connection
4. Replace the belt is very easy and fast, and do not need to adjust the original settings 5. The whole belt driven system safe and trouble-free operation.

Advantages :

Control Panel:
Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instruction. Remote control realizes unattended operation, and the user-friendly human-machine interface displays instructions and parameters in written form. Also, it can function to self diagnose faults, give warning and automatically regulate the capacity.

Oil filter:
Rotary filters are applied to completely remove the impurities in the lubricating oil, easy to replace and free of oil impregnate.

Cooler:
It is designed for low temperature difference to increase heat exchange area, and ideal to be applied to high-temperature and high-humidity operating environment.

Motor:
First-class motors are adopted, with the level of protection being IP54 and insulation level being F.

Acoustic enclosure:
It is designed into fully-closed mute box, in which sound-absorbing sponge are attached for effective absorption of noise, thereby making the noise 3-5dB(A) lower than that made by the compressors of the same kind. It is reasonably structured overall and very easy to maintain and repair.

Application:

Customer Comments:

About Elang:

FAQ:

Q1.Why customer choose us?

A:ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 20 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and over 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.

Q2.Are you a manufacturer or trading company?

A:We are professional manufacturer with big modern factory in Shanghai,China.Both OEM & ODM service can be accepted.

Q3.What’s your delivery time?

A:Generally 3 to 7 days, if urgently order, pls contact our sales in advance.

Q4.How long is your air compressor warranty?

A:One year for the whole machine and five years for screw air end, except consumble spare parts.

Q5.How long could your air compressor be used?

A:Generally, more than 10 years.

Q6. What's payment term?

A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.

Q7.How about your customer service?

A:24 hours on-line service available. 48hours global problem sovled promise.
10+ professional overseas technical service team.

Q8.How about your after-sales service?

A:1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
