Product Name:

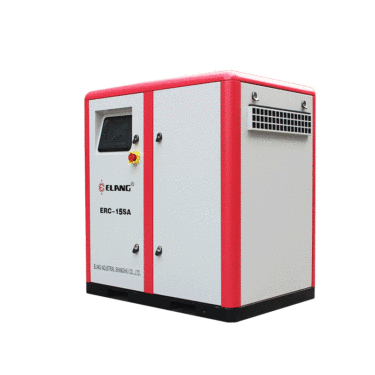

15HP 11Kw Direct Driven Screw Air Compressor
Working Pressure: 7 - 13bar (100 - 181psi)
Air Delivery: 1.3 - 1.8m3/min
Motor Power: 11kw/15hp
Type of Driving: Direct Driven
Type of Cooling: Air Cooling
Dimension: 1150*750*1180mm
Weight: 450kg
Output pipe Diameter: 1"
Highly-quality shaft coupling elastic body can buffer and compensate for the imbalanced moment of operation. The elastomer is designed into and involute cambered surface, which effectively avoids stress concentration and improve the buffering effect of the elastomer to increase its bearing capacity. In addition, the high-quality materials ensure excellent durability for the elastomer and can better absorb the vibration arising from the rotation to remove noise. Since no wearing parts are used for the double-screw compressor air end, it can operate for up to 40000-80000 hours between failure if well maintained.
Features:
- 1. A precisely-made central bracket is used to keep the motor aligned permanently with the air end.
- 2. A highly resilient coupling is adopted to make the compressor operate smoothly, and the elastomer is long in useful life.
- 3. The discharge pipe is double-wall corrugated pipe, and the oil way uses a special high-pressure hose which is resistant to temperature up to 125℃.
- 4. For the extremely high temperature conditions in some districts, the large-area plate heat. exchange and high-efficiency water chiller are used.
Highly-quality shaft coupling elastic body can buffer and compensate for the imbalanced moment of operation. The elastomer is designed into and involute cambered surface, which effectively avoids stress concentration and improve the buffering effect of the elastomer to increase its bearing capacity. In addition, the high-quality materials ensure excellent durability for the elastomer and can better absorb the vibration arising from the rotation to remove noise.
Advantage:
1.Large displacement: Displacement 10% higher than ordinary piston compressor.
2. Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
3. Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
4. Strong stability: Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
Application:
Customer Comments:
About Elang:
FAQ:
-
Q1.Why customer choose us?
A:ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 20 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and over 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2.Are you a manufacturer or trading company?
A:We are professional manufacturer with big modern factory in Shanghai,China.Both OEM & ODM service can be accepted.
Q3.What’s your delivery time?
A:Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4.How long is your air compressor warranty?
A:One year for the whole machine and five years for screw air end, except consumble spare parts.
Q5.How long could your air compressor be used?
A:Generally, more than 10 years.
Q6. What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.
Q7.How about your customer service?
A:24 hours on-line service available. 48hours global problem sovled promise.
10+ professional overseas technical service team.
Q8.How about your after-sales service?
A:1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
Model | Working Pressure | Air Delivery | Motor Power | Type of Driving | Type of Cooling | Dimension(mm) | Weight(kg) | Output pipe Diameter | ||||||
psig | bar | cfm | m3/min | kw/hp | L | W | H | |||||||
ERC-10SA | 100 | 7 | 38.8 | 1.1 | 7.5/10 | Direct driven |
Air Cooling / Water Cooling |
850 | 640 | 880 | 350 | 3/4" | ||
116 | 8 | 35.3 | 1 | |||||||||||
145 | 10 | 30.0 | 0.85 | |||||||||||
181 | 12.5 | 24.7 | 0.7 | |||||||||||
ERC-15SA | 100 | 7 | 63.6 | 1.8 | 11/15 | 1150 | 750 | 1180 | 450 | 1" | ||||
116 | 8 | 58.3 | 1.65 | |||||||||||
145 | 10 | 53.0 | 1.5 | |||||||||||
181 | 12.5 | 45.9 | 1.3 | |||||||||||
ERC-20SA | 100 | 7 | 84.7 | 2.4 | 15/20 | 1150 | 750 | 1180 | 460 | 1" | ||||
116 | 8 | 77.7 | 2.2 | |||||||||||
145 | 10 | 74.2 | 2.1 | |||||||||||
181 | 12.5 | 63.6 | 1.8 | |||||||||||
ERC-25SA | 100 | 7 | 109.5 | 3.1 | 18.5/25 | 1200 | 880 | 1450 | 620 | 1" | ||||
116 | 8 | 102.4 | 2.9 | |||||||||||
145 | 10 | 95.3 | 2.7 | |||||||||||
181 | 12.5 | 81.2 | 2.3 | |||||||||||
ERC-30SA | 100 | 7 | 134.2 | 3.8 | 22/30 | 1380 | 850 | 1150 | 640 | 11/4" | ||||
116 | 8 | 127.1 | 3.6 | |||||||||||
145 | 10 | 113.0 | 3.2 | |||||||||||
181 | 13 | 88.3 | 2.5 | |||||||||||
ERC-40SA | 100 | 7 | 187.1 | 5.3 | 30/40 | 1450 | 900 | 1220 | 900 | 11/4" | ||||
116 | 8 | 176.6 | 5 | |||||||||||
145 | 10 | 151.8 | 4.3 | |||||||||||
181 | 13 | 127.1 | 3.6 | |||||||||||
ERC-50SA | 100 | 7 | 233.0 | 6.6 | 37/50 | 1595 | 1000 | 1365 | 1060 | 11/2" | ||||
116 | 8 | 218.9 | 6.2 | |||||||||||
145 | 10 | 201.3 | 5.7 | |||||||||||
181 | 13 | 162.4 | 4.6 | |||||||||||
ERC-60SA | 100 | 7 | 282.5 | 8 | 45/60 | 1595 | 1000 | 1450 | 1150 | 11/2" | ||||
116 | 8 | 271.9 | 7.7 | |||||||||||
145 | 10 | 243.6 | 6.9 | |||||||||||
181 | 13 | 211.9 | 6 | |||||||||||
ERC-75SA | 100 | 7 | 370.8 | 10.5 | 55/75 | 2100 | 1250 | 1700 | 1750 | 2" | ||||
116 | 8 | 346.0 | 9.8 | |||||||||||
145 | 10 | 307.2 | 8.7 | |||||||||||
181 | 13 | 257.8 | 7.3 | |||||||||||
ERC-100SA | 100 | 7 | 480.2 | 13.6 | 75/100 | 2100 | 1250 | 1700 | 1840 | 2" | ||||
116 | 8 | 459.0 | 13 | |||||||||||
145 | 10 | 399.0 | 11.3 | |||||||||||
181 | 13 | 356.6 | 10.1 | |||||||||||
ERC-120SA | 100 | 7 | 572.0 | 16.2 | 90/120 | 2100 | 1250 | 1700 | 2030 | 2" | ||||
116 | 8 | 543.8 | 15.4 | |||||||||||
145 | 10 | 466.1 | 13.2 | |||||||||||
181 | 13 | 395.5 | 11.2 | |||||||||||
ERC-150SA | 100 | 7 | 734.4 | 20.8 | 110/150 | 2545 | 1450 | 1900 | 2920 | DN65 | ||||
116 | 8 | 688.5 | 19.5 | |||||||||||
145 | 10 | 582.6 | 16.5 | |||||||||||
181 | 13 | 483.7 | 13.7 | |||||||||||
ERC-175SA | 100 | 7 | 847.4 | 24 | 132/175 | 2545 | 1450 | 1900 | 3200 | DN65 | ||||
116 | 8 | 812.1 | 23 | |||||||||||
145 | 10 | 706.2 | 20 | |||||||||||
181 | 13 | 547.3 | 15.5 | |||||||||||
ERC-200SA | 100 | 7 | 981.6 | 27.8 | 160/200 | 2790 | 1550 | 2000 | 3600 | DN65 | ||||
116 | 8 | 918.1 | 26 | |||||||||||
145 | 10 | 829.8 | 23.5 | |||||||||||
181 | 13 | 688.5 | 19.5 | |||||||||||
ERC-250SA | 100 | 7 | 1147.6 | 32.5 | 185/250 | 2790 | 1550 | 2000 | 3780 | DN65 | ||||
116 | 8 | 1094.6 | 31 | |||||||||||
145 | 10 | 918.1 | 26 | |||||||||||
181 | 13 | 762.7 | 21.6 | |||||||||||
ERC-270SA | 100 | 7 | 1218.2 | 34.5 | 200/270 | 2850 | 1700 | 2000 | 4400 | DN80 | ||||
116 | 8 | 1165.2 | 33 | |||||||||||
145 | 10 | 988.7 | 28 | |||||||||||
181 | 13 | 829.8 | 23.5 | |||||||||||
ERC-300SA | 100 | 7 | 1341.8 | 38 | 220/300 | 3150 | 2000 | 2120 | 4930 | DN100 | ||||
116 | 8 | 1288.8 | 36.5 | |||||||||||
145 | 10 | 1129.9 | 32 | |||||||||||
181 | 13 | 953.4 | 27 | |||||||||||
ERC-330SA | 100 | 7 | 1518.3 | 43 | 250/330 | 3150 | 2000 | 2120 | 5450 | DN100 | ||||
116 | 8 | 1430.1 | 40.5 | |||||||||||
145 | 10 | 1288.8 | 36.5 | |||||||||||
181 | 13 | 1129.9 | 32 | |||||||||||
ERC-375SA | 100 | 7 | 1818.5 | 51.5 | 280/375 | 4000 | 2000 | 2100 | 6150 | DN125 | ||||
116 | 8 | 1765.5 | 50 | |||||||||||
145 | 10 | 1589.0 | 45 | |||||||||||
181 | 13 | 1306.5 | 37 | |||||||||||
ERC-420SA | 100 | 7 | 1977.4 | 56 | 315/420 | 4600 | 2300 | 2400 | 7500 | DN125 | ||||
116 | 8 | 1942.1 | 55 | |||||||||||
145 | 10 | 1730.2 | 49 | |||||||||||
181 | 13 | 1447.7 | 41 | |||||||||||
ERC-470SA | 100 | 7 | 2259.8 | 64 | 355/470 | 4600 | 2300 | 2400 | 8100 | DN150 | ||||
116 | 8 | 2189.2 | 62 | |||||||||||
145 | 10 | 1906.7 | 54 | |||||||||||
181 | 13 | 1624.3 | 46 | |||||||||||
ERC-550SA | 100 | 7 | 2577.6 | 73 | 400/550 | 5000 | 2350 | 2400 | 8400 | DN150 | ||||
116 | 8 | 2471.7 | 70 | |||||||||||
145 | 10 | 2153.9 | 61 | |||||||||||
181 | 13 | 1836.1 | 52 | |||||||||||
ERC-600SA | 100 | 7 | 2860.1 | 81 | 450/600 | 5500 | 2590 | 2800 | 9000 | DN150 | ||||
116 | 8 | 2789.5 | 79 | |||||||||||
145 | 10 | 2471.7 | 70 | |||||||||||
181 | 13 | 2083.3 | 59 | |||||||||||
ERC-670SA | 100 | 7 | 3142.6 | 89 | 500/670 | 5500 | 2590 | 2800 | 9500 | DN200 | ||||
116 | 8 | 3072.0 | 87 | |||||||||||
145 | 10 | 2718.9 | 77 | |||||||||||
181 | 13 | 2365.8 | 67 | |||||||||||
ERC-750SA | 100 | 7 | 3601.6 | 102 | 560/750 | 6500 | 2700 | 3000 | 10000 | DN200 | ||||
116 | 8 | 3460.4 | 98 | |||||||||||
145 | 10 | 3072.0 | 87 | |||||||||||
181 | 13 | 2718.9 | 77 | |||||||||||
Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required Motor Protection Class: IP23/IP54/IP55 or as per your required Certification: CE/ISO9001/TUV/UL/SGS/ASME Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok |
