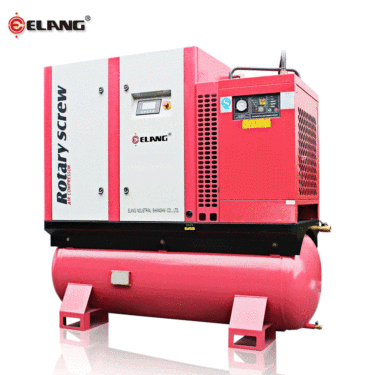

25HP 18.5Kw Combined Screw Air Compressor
Working pressure: 6.5~13bar      95~190psig
Air delivery: 2.3~3.1m3/min     81.2~109.5cfm
Working power: 18.5kw       25hp
Share This Product:
  • Product Details
  • Technical Parameters
  • Catalgue Download
25HP 18.5Kw Combined Screw Air Compressor

Product Name:
25HP 18.5Kw Combined Screw Air Compressor
Working Pressure: 7 - 13bar (100 - 181psi)
Air Delivery: 2.3 - 3.1m3/min
Motor Power: 18.5kw/25hp
Type of Driving: Belt Driven
Type of Cooling: Air Cooling
Dimension: 1200*880*1450mm
Weight: 620kg
Output pipe Diameter: 1"

The combined screw air compressor integrates the parts including screw compressor, freeze drier, fine filter and air tank, making it convenient for the user to install, use and move. After the air pass the integrated system, the quality of the air is made largely better to satisfy process requirements of various companies. It is of beautiful appearance, stable performance and economy. It is one of the important series exported by our company.


Air End
No vibration and low noise interpret perfectly the genuine made in Germany. Big rotor, low speed of rotation and direct connection.

First-class motors are adopted, with the level of protection being IP54 and insulation level being F.

Rotors are asymmetric in profile, backed up by ball bearings and roller bearings. Operates at a low speed, thereby low in abrasion and maintenance expenses, air end is long service life. Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of air end.

Control panel
Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions, remote control realizes unattended operation, and the user-friendly human-machine interface displays instructions and parameters in written form also, it can function to self diagnose faults, give warning and automatically regulate the capacity.


Customer Comments:

About Elang:


  • Q1.Why customer choose us?

    A:ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 20 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and over 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.

    Q2.Are you a manufacturer or trading company?

    A:We are professional manufacturer with big modern factory in Shanghai,China.Both OEM & ODM service can be accepted.

    Q3.What’s your delivery time?

    A:Generally 3 to 7 days, if urgently order, pls contact our sales in advance.

    Q4.How long is your air compressor warranty?

    A:One year for the whole machine and five years for screw air end, except consumble spare parts.

    Q5.How long could your air compressor be used?

    A:Generally, more than 10 years.

    Q6. What's payment term?

    A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
    Also we could accept USD, RMB, Euro and other currency.

    Q7.How about your customer service?

    A:24 hours on-line service available. 48hours global problem sovled promise.
    10+ professional overseas technical service team.

    Q8.How about your after-sales service?

    A:1. Provide customers with intallation and commissioning online instructions.
    2. Well-trained engineers available to overseas service.
    3. Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Related Procucts:

  • Direct Driven Air Compressor
  • Belt Driven Air Compressor
  • Combined Air Compressor
  • CNG Air Compressor
  • Oil Free Air Compressor
  • PM VSD Air Compressor
  • Two Stage Air Compressor(New)
  • Diesel Air Compressor
Model Working Pressure Air Delivery Motor Power Air tank Air dryer Air filter Type of Driving Type of Cooling Dimension(mm) Weight
Output pipe
psig bar cfm m3/min kw/hp m3 Nm3/min Nm3/min L W H
ERC-10SA 100 7 38.8 1.1 7.5/10 0.3 1.2 1.2 Belt Driven Air Cooling
Water Cooling
850 640 880 350 3/4"
116 8 35.3 1
145 10 30.0 0.85
181 12.5 24.7 0.7
ERC-15SA 100 7 63.6 1.8 11/15 0.5 2.4 2.4 1150 750 1180 450 1"
116 8 58.3 1.65
145 10 53.0 1.5
181 12.5 45.9 1.3
ERC-20SA 100 7 84.7 2.4 15/20 0.5 2.6 2.6 1150 750 1180 460 1"
116 8 77.7 2.2
145 10 74.2 2.1
181 12.5 63.6 1.8
ERC-25SA 100 7 109.5 3.1 18.5/25 0.5 3.8 3.8 1200 880 1450 620 1"
116 8 102.4 2.9
145 10 95.3 2.7
181 12.5 81.2 2.3
ERC-30SA 100 7 134.2 3.8 22/30 0.5 3.8 3.8 1200 880 1450 640 1"
116 8 127.1 3.6
145 10 113.0 3.2
181 12.5 88.3 2.5
Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required
Motor Protection Class: IP23/IP54/IP55 or as per your required
Certification: CE/ISO9001/TUV/UL/SGS/ASME
Voltage: 380V/3PH/50HZ/60HZ,   220V/3PH/50HZ/60HZ,   400V/3PH/50HZ/60HZ,   440V/3PH/50HZ/60HZ,   415V/3PH/50HZ/60HZ,   230V/3PH/50HZ/60HZ,  dual voltage is also ok
