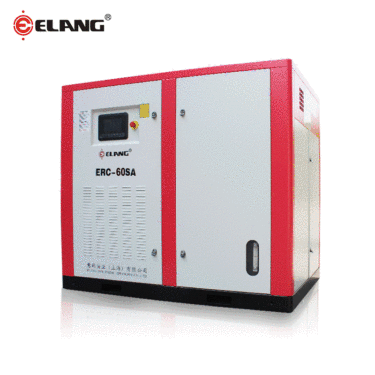

60HP 45Kw Energy Saving Two Stage Screw Air Compressor
Working pressure: 4.0~6.0bar    65~94psig
Air delivery: 2.3~11.8m3/min    81.2~416.7cfm
Working power: 45kw       60hp
Share This Product:
  • Product Details
  • Technical Parameters
  • Catalgue Download
60HP 45Kw Energy Saving Two Stage Screw Air Compressor

Product Name:
60HP 45Kw Energy Saving Two Stage Screw Air Compressor
Working Pressure: 4 - 6bar (65 - 94psi)
Air Delivery: 2.3 - 11.8m3/min
Motor Power: 45kw/60hp
Type of Driving: Direct Driven
Type of Cooling: Air Cooling / Water Cooling

Two-stage Compression Double Screw Air Compressor, screw rotor adopts a two-stage compression engine, is to use two groups of size is not consistent, reasonable distribution of pressure, lowering the pressure level at each level compression ratio. Reduce the leakage and improve the capacity, reduce the bearing load, improve the bearing life, prolong the life of the host. The inlet of the main engine adopts the axial inlet, and the intake noise is reduced. Direct drive, high efficiency, low vibration and low noise.

Features:

  • Air End

    Double stage compression compared to single-stage compression,the two compression tends to the most provincial power of the isothermal compression,from the principle,the two-stage compression energy saving 5~8% than single stage.

    Won the award of Level 1 energy Efficiency Grade Certification.
    Compared with Level 2 Energy Efficiency GradeSave 10%-15% energy.
    Compared with Level 3 Energy Efficiency GradeSave 20%-30% energy.

  • Motor

    a)the use of energy-efficient motor,F grade insulation grade,high protection motor,with imported SKF bearings.
    b)the capacity of the motor is increased by 1.2,so as to ensure that under the condition of various weather conditions,the load can be loaded without fault operation.Control panel LCD HD touch monitor,PLC control ,Human menu interface design.
    Can display multi line operation parameters,historical records Simple operation,inquiry ,convenient maintenance.

  • High Efficient Separation of Oil and Gas System

    The oil content of the compressed air of the outlet is only 2ppm by using the three stage method(cyclone separation method,sedimentation separation method and the fine filtration method)

  • Low Noise Design

    A)selection of large diameter,low speed of the low noise fan: provide large air quantity can effectively reduce the fan noise.B)totally enclosed mute type design,accord with international working noise standard.
    B)Totally enclosed mute type design,accord with international working noise standard.

    Two-stage air end

    1. Two-stage compression,the gas is compressed from 1 bar to 3 bar and cooled down then compressed from 3 bar to 7/8bar.
    2. Isothermal compression, The two-stage compression compresses the gas from normal pressure to about 0.2mpa, cools it first, and then after it is compressed to the rated pressure and cooled by the after-cooler, the change of thermal expansion and cold contraction is small, improving the efficiency.
    3. Low compression ratio, greatly reduced reflux leakage, screw host output flow is improved;the compression heat generated in the compression process will be reduced, and the temperature rise in the compression chamber will be low, which can improve the volume efficiency of the compressed air.

Application:

About Elang:

FAQ:

  • Q1.Why customer choose us?

    A:ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 20 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and over 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.



    Q2.Are you a manufacturer or trading company?

    A:We are professional manufacturer with big modern factory in Shanghai,China.Both OEM & ODM service can be accepted.



    Q3.What’s your delivery time?

    A:Generally 3 to 7 days, if urgently order, pls contact our sales in advance.



    Q4.How long is your air compressor warranty?

    A:One year for the whole machine and five years for screw air end, except consumble spare parts.



    Q5.How long could your air compressor be used?

    A:Generally, more than 10 years.



    Q6. What's payment term?

    A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
    Also we could accept USD, RMB, Euro and other currency.



    Q7.How about your customer service?

    A:24 hours on-line service available. 48hours global problem sovled promise.
    10+ professional overseas technical service team.



    Q8.How about your after-sales service?

    A:1. Provide customers with intallation and commissioning online instructions.
    2. Well-trained engineers available to overseas service.
    3. Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.


Related Procucts:

  • Direct Driven Air Compressor
  • Belt Driven Air Compressor
  • Combined Air Compressor
  • CNG Air Compressor
  • Oil Free Air Compressor
  • PM VSD Air Compressor
  • Two Stage Air Compressor(New)
  • Diesel Air Compressor
Model Working Pressure Air Delivery Motor Power Type of Driving Type of Cooling Dimension(mm) Weight(kg) Output pipe Diameter
psig bar m3/min kw/hp L W H
ERC-30AL-II 65 4.5 1.4~5.6 22/30 Direct driven Air Cooling
/
Water Cooling
1480 900 1330 1000 G1 1/4
80 5.5 1.3~5.2
94 6.5 1.2~4.6
ERC-40AL-II 65 4.5 1.8~7.3 30/40 1650 1000 1365 1200 G2
80 5.5 1.7~6.9
94 6.5 1.5~6.2
ERC-50AL-II 65 4.5 2.5~10 37/50 1650 1000 1365 1350 DN65
80 5.5 2.2~9.0
94 6.5 2.0~8.0
ERC-60AL-II 65 4.5 3.0~11.8 45/60 2100 1250 1700 1500 DN65
80 5.5 2.8~11.0
94 6.5 2.3~9.2
ERC-75AL-II 65 4.5 3.8~15.0 75/55 2300 1355 1900 1850 DN65
80 5.5 3.4~13.6
94 6.5 3.0~12.0
ERC-100AL-II 65 4.5 4.8~19.5 75/100 2300 1355 1900 2350 DN80
80 5.5 4.6~18.2
94 6.5 4.25~17.0
ERC-120AL-II 65 4.5 6.2~25.1 90/120 2760 1510 1950 3200 DN100
80 5.5 5.8~23.0
94 6.5 5.2~21.0
ERC-150AL-II 65 4.5 7.5~29.8 110/150 2760 1510 1950 3200 DN100
80 5.5 6.4~27.5
94 6.5 6.2~25.0
ERC-175AL-II 65 4.5 8.8~35.0 132/175 3360 2180 2230 4650 DN125
80 5.5 8.1~32.5
94 6.5 6.2~29.5
ERC-200AL-II 65 4.5 10.8~46.5 160/200 3360 2180 2230 4650 DN125
80 5.5 10.1~40.5
94 6.5 9.5~37.6
ERC-250AL-II 65 4.5 12.0~47.8 185/250 3550 2250 2350 5500 DN150
80 5.5 11.1~44.5
94 6.5 10.3~41.5
ERC-270AL-II 65 4.5 13.1~52.5 200/270 3350 2250 2350 6500 DN150
80 5.5 12.2~49.0
94 6.5 11.3~45.6
Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required
Motor Protection Class: IP23/IP54/IP55 or as per your required
Certification: CE/ISO9001/TUV/UL/SGS/ASME
Voltage: 380V/3PH/50HZ/60HZ,   220V/3PH/50HZ/60HZ,   400V/3PH/50HZ/60HZ,   440V/3PH/50HZ/60HZ,   415V/3PH/50HZ/60HZ,   230V/3PH/50HZ/60HZ,  dual voltage is also ok

Model Working Pressure Air Delivery Motor Power Type of Driving Type of Cooling Dimension(mm) Weight(kg) Output pipe Diameter
psig bar cfm m3/min kw/hp L W H
ERC-20SA-II 100 7 109.5 3.1 15/20 Direct driven Air Cooling
/
Water Cooling
1500 950 1300 1250 G 1/2
145 10 106.0 3.0
145 10 102.4 2.9
181 12.5 95.3 2.7
ERC-25SA-II 100 7 127.1 3.6 18.5/25 1500 950 1300 1300 G 1
116 8 123.6 3.5
145 10 106.0 3
181 12.5 99.0 2.8
ERC-30SA-II 100 7 155.4 4.4 22/30 1480 900 1330 950 G 1-1/4
116 8 151.8 4.3
145 10 127.0 3.6
181 12.5 120.0 3.4
ERC-40SA-II 100 7 233.0 6.6 30/40 1650 1100 1400 1100 G 1-1/2
116 8 222.5 6.3
145 10 173.0 4.9
181 12.5 148.3 4.2
ERC-50SA-II 100 7 254.2 7.2 37/50 1650 1100 1365 1100 G 1-1/2
116 8 250.7 7.1
145 10 204.8 5.8
181 12.5 190.7 5.4
ERC-75SA 116 8 441.4 12.5 55/75 2650 1500 1900 3100 DN50
145 10 349.6 9.9
181 12.5 335.4 9.5
ERC-100SA 116 8 554.4 15.7 75/100 2650 1500 1900 3100 DN50
145 10 437.8 12.4
181 12.5 346.0 9.8
ERC-120SA 116 8 674.4 19.1 90/120 2760 1510 1950 3200 DN65
145 10 547.3 15.5
181 12.5 437.8 12.4
ERC-150SA 116 8 819.2 23.2 110/150 2860 1890 2060 4350 DN65
145 10 674.4 19.1
181 12.5 547.3 15.5
ERC-175SA 116 8 1002.8 28.4 132/175 2860 1890 2060 4850 DN80
145 10 819.2 23.2
181 12.5 674.4 19.1
ERC-200SA 116 8 1182.9 33.5 160/200 3450 1930 2250 6200 DN80
145 10 1002.8 28.4
181 12.5 819.2 23.2
ERC-250SA 116 8 1366.5 38.7 185/250 3450 1930 2250 6300 DN80
145 10 1182.9 33.5
181 12.5 1002.8 28.4
ERC-270SA 116 8 1493.6 42.3 200/270 3450 1930 2250 6400 DN100
145 10 1366.5 38.7
181 12.5 1182.9 33.5
ERC-300SA 116 8 1564.2 44.3 220/300 3450 1930 2250 6800 DN100
145 10 1437.1 40.7
181 12.5 1366.5 38.7
ERC-330SA 116 8 1818.5 51.5 250/330 3450 1930 2250 7500 DN100
145 10 1528.9 43.3
181 12.5 1419.5 40.2
ERC-375SA 116 8 2002.1 56.7 280/375 3530 2280 2300 8500 DN125
148 10 1638.4 46.4
181 12.5 1511.3 42.8
ERC-420SA 116 8 2185.7 61.9 315/420 3530 2280 2300 8700 DN125
145 10 1984.4 56.2
181 12.5 1638.4 46.4
Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required
Motor Protection Class: IP23/IP54/IP55 or as per your required
Certification: CE/ISO9001/TUV/UL/SGS/ASME
Voltage: 380V/3PH/50HZ/60HZ,   220V/3PH/50HZ/60HZ,   400V/3PH/50HZ/60HZ,   440V/3PH/50HZ/60HZ,   415V/3PH/50HZ/60HZ,   230V/3PH/50HZ/60HZ,  dual voltage is also ok
