7.5 Kw - 250 Kw Oil Injected Screw Compressor Air End

...

Home > Products > Air End > 7.5 Kw - 250 Kw Oil Injected Screw Compressor Air End

7.5 Kw - 250 Kw Oil Injected Screw Compressor Air End

Working pressure: 8bar / 10bar / 13bar 0.8mpa / 1mpa / 1.3mpa

Motor power: 7.5-250kw / 10-330hp

Rated Speed: 2950rpm

Whatsapp Contact Us E-mail

Share This Product:

Product Details
Catalgue Download

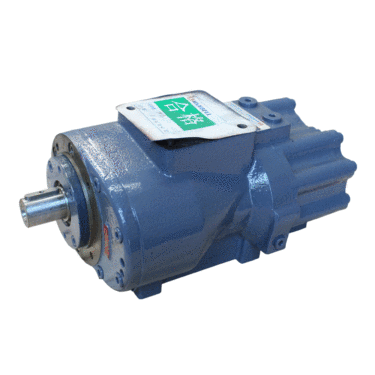

7.5 Kw - 250 Kw Oil Injected Screw Compressor Air End

Product Name:
7.5 Kw - 250 Kw Oil Injected Screw Compressor Air End
Suction Pressure: 1 atm
Motor Power: 7.5 - 250 kw / 10 - 330 hp
Rated Speed: 2950rpm
Relative Humidity: 80% R.H.
Discharge Pressure: 0.8Mpa.g / 1Mpa.g / 1.3Mpa.g
Discharge Temperature: 80 Deg.C

Air flow rate related to suction condition according to ISO 1217

Product Details:

Product Parameter Data:

Model: AA-077 / AB-077

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	12.0	0.83	6.4	70.0	17.2	5.1
	1	12.0	0.80	7.2	76.0	22.2	5.9
	1.3	12.0	0.76	8.6	81.0	27.3	7.3

Model: AA-130 / AB-130

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	14.4	1.92	13.0	71.0	39.0	10.4
	1	14.4	1.90	14.5	76.0	44.9	12.0
	1.3	14.4	1.87	16.8	82.0	60.5	14.4

Model: AA-210 / AB-210

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	17.9	2.89	19.4	66.0	37.4	15.5
	1	17.9	2.87	21.5	71.0	42.8	17.7
	1.3	17.9	2.83	24.7	77.0	54.6	21.0

Model: AA-240 / AB-240

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	17.9	3.42	22.8	67.0	47.4	18.3
	1	17.9	3.36	25.7	72.0	54.7	21.1
	1.3	17.9	3.28	30.0	77.0	66.2	25.5

Model: AA-420 / AB-420

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	22.7	5.96	38.6	63.0	61.2	30.9
	1	22.7	5.91	43.0	68.0	70.0	35.3
	1.3	22.7	5.85	49.5	73.0	83.2	41.9

Model: AA-480R / AB-480R

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	26.9	7.06	44.9	67.0	93.2	35.9
	1	26.9	6.96	50.5	72.0	107.4	41.4
	1.3	26.9	6.80	58.7	77.0	129.6	49.9

Model: AA-600R / AB-600R

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	26.9	8.77	56.5	65.0	101.7	45.2
	1	26.9	8.60	63.3	70.0	116.6	51.9
	1.3	26.9	8.30	73.0	75.0	139.6	62.1

Model: AA-780 / AB-780

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	27.9	11.71	77.0	64.0	128.5	61.0
	1	27.9	11.63	89.0	70.0	164.0	72.9
	1.3	27.9	11.52	104.0	76.0	212.3	88.1

Model: AA-780R / AB-780R

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	27.9	11.71	77.0	64.0	128.5	61.0
	1	27.9	11.63	89.0	70.0	164.0	72.9
	1.3	27.9	11.52	104.0	76.0	212.3	88.1

Model: AA-1030R / AB-1030R

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	28.4	15.58	103.3	64.0	172.5	81.8
	1	28.4	15.47	119.3	70.0	220.0	97.8
	1.3	28.4	15.33	139.5	76.0	284.6	118.1

Model: AA-1200R / AB-1200R

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	31.9	18.90	117.5	61.0	167.0	94.1
	1	31.9	18.74	131.3	66.0	191.4	107.8
	1.3	31.9	18.47	150.7	71.0	227.2	128.0

Model: AA-1320 / AB-1320

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	34.9	21.08	139.5	58.0	171.2	111.7
	1	34.9	20.82	157.4	64.0	207.4	129.1
	1.3	34.9	20.42	181.4	69.0	247.6	154.2

Model: AA-1560 / AB-1560

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	34.9	23.88	151.6	59.0	194.9	121.3
	1	34.9	23.67	169.5	64.0	223.4	139.1
	1.3	34.9	23.32	195.2	69.0	266.3	165.8

Model: AA-1900R / AB-1900R

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	37.5	29.98	192.4	56.0	217.2	154.6
	1	37.5	29.86	213.5	61.0	247.3	176.0
	1.3	37.5	29.68	245.3	67.0	304.9	207.9

Model: AA-2600 / AB-2600

Rated Speed	Discharge Pressure	Tip Speed	Air Flow	Shaft Power	Oil Injection Temperature	Oil Flow Rate	Oil Capactity
(rpm)	(Mpa.g)	(m/s)	(m³/min)	(kw)	(Deg.C)	(l/min)	(kw)
2950	0.8	41.5	40.74	260.6	57.0	308.5	210.4
	1	41.5	40.60	289.4	62.0	351.4	239.7
	1.3	41.5	40.40	332.9	67.0	415.3	283.2

Hot Sale of Air End:

Customer Comments:

About Elang:

FAQ:

Q1.Why customer choose us?

A:ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 20 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and over 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.

Q2.Are you a manufacturer or trading company?

A:We are professional manufacturer with big modern factory in Shanghai,China.Both OEM & ODM service can be accepted.

Q3.What’s your delivery time?

A:Generally 3 to 7 days, if urgently order, pls contact our sales in advance.

Q4.How long is your air compressor warranty?

A:One year for the whole machine and five years for screw air end, except consumble spare parts.More Oil injected screw compressor Options.

Q5.How long could your air compressor be used?

A:Generally, more than 10 years.

Q6. What's payment term?

A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.

Q7.How about your customer service?

A:24 hours on-line service available. 48hours global problem sovled promise.
10+ professional overseas technical service team.

Q8.How about your after-sales service?

A:1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.
